Special & Unique Honda Bikes

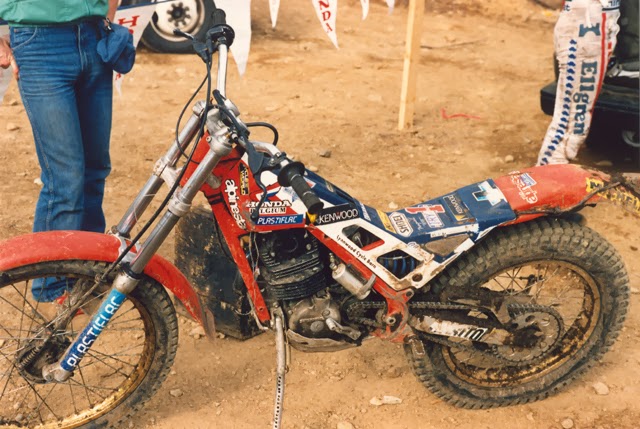

RTL 250S Works, 1985
RTL 300 - Honda 305 Long Stroke
Mervyn took this picture in 1978 at Greensmith National Trial, Shropshire.
Rider is Rob Sheperd and the section is Crumps Brook. Thanks Mervyn!.
HONDA XL250 ELLIOTT SPECIAL
Honda xl 250 elliott special trial - history thanks to Justyn Norek
Patrick Elliott master welder in tig technology and great enthousiast of trials, has ridden at early seventies best trials bikes of that period (namely ossa, montesa and suzuki) by pure chance has one day ocassion to compete in trial on english bike, triumph tiger cub.
Fact is that he has enjoyed this ride on small four stroke bike than riding more powerfull and fast two strokes that he has used so far...
In that period there was begining of honda domination in trials, first by sammy miller team in national events, then with eddy lejeune in world trials championship on honda 360 prototypes.
Patrick was fascinated by performance of these moto, but production
bikes were different and less competitive.
so he decided he can built one of his own concept.
He started buying production offroad xl 250 (uk registration number
veo 526t) destroyed its frame, and built new frame, light and compact.
Here comes interesting fact, as he has used steel tubes of very hard steel that were almost impossibly to bent, he has designed frame using only straight elements and multiple tig welding !!!
Same concept was aplied for exhoust tube, straight segments and lot
of welding, at least he was master welder, wasnt he ?
good example of quote "necessity is mother of invention", so in this
way Patrick bypassed limitation, using his creativity....
engine was detuned with lower compression rate and amal carburetor
was fitted, smaller than standard keihin, to get better torque, so important in trials.
As for suspension, he has opted for best from period:
telesco front fork, girling shocks, akront rims, montesa hubs....
at the begining fuel tank was from yamaha fs1e 50cc road bike, later substituted by fiber glass tankseat combo taken from Seeley Honda,
Albeit heavilly modificated to allow fitment of xl250 engine , so tank capacity was finally 2,5 liters more than sufficent due to low fourstroke fuel consumption.
final weight was reduced to 94 kg, some 30 less than original bike and
also 5 less than standard tl250.
this bike was completed in 1983 and used till the end of 1985, when pace of development of works trials bikes has outclassed it with arrival of monoshocks...
during this period patrick competed in several local trials in northern england, most challenging and memorable was "lakes 2 day trial",
after that Patrick gave more time to marriage, grawing family, house
then trials and rode bike only ocassionly through 90ties.
Finally in 2007 he has met apassionate trials rider from italy and with
help of lot of italian red wine, decided to sell his unique and only one
trials machine that stand now proudly between moto guzzi trial and
ccm 350 trial that we already tested, in garage of this keen trials rider somewhere in piedmonte...
and now its time to test her...more about it soon...
RS 250T KONDO "Alien"
Hiroshi Kondo was the winner of the Japan Trial Championship at 1974 with Yamaha TY250 and 1977, 1978 and 1979 winner with Honda.
Kondo also rode at SSDT in 1976. Hiroshi rode at SSDT with a special Honda RS250T in 1984 inscribed with the number 154. Below you can see more info and pictures.
Thanks also to my friends Ryosuke Ikuno and John Moffat for also his contribution with also pictures and information on the Kondo bike for The Honda Trials History webpage.
Picture © The Honda Trials History webpage thanks to Mr. Hiroshi Kondo (owner of the Picture)
Hiroshi Kondo made one of the most revolutionary performances never seen before in a Honda trials machine.
Starting from HRC Honda RS250T machine he developed the first complete aluminum frame for a trials machine in the world. Was in 1982, just coinciding first Honda World Trial Championship that Eddy Lejeune won.
This amazing machine had a special design containing the fuel tank into the upper side of the faluminim frame, just under the shapes. Also at same level was included a perforated entrance window for the intake of the air to the Carburetor air box. I have no reference of the final weight of the bike.
This special design defined an strange an peculiar look who favored the name of "ALIEN" in reference of the movie.
Honda Fraser HT250
THe HT250 was a very special and rare bike. Today I only have reference from two only HT250 survivors.
One under restoration (Honda Trials History) and second one from Callum Roberston from UK.
(later in 1985, JJCobas from Spain applyed same solution on his revolutionary Montesa and Bultaco engine: The JJ Cobas Trials bike)
